Display |
|
Type |
0.55" Digital Micromirror Device (DLP) |
Resolution |
XGA 1024x768 (Native) |
Lens |
Fixed Manual optical zoom / Manual optical focus |
Keystone |
Vertical digital keystone correction, +/- 40º |
Display Size |
40" - 300" / 1.0m - 7.6m |
Throw Distance |
1.6ft - 14.0ft / 0.5m - 4.3m |
Throw Ratio |
0.68:1 |

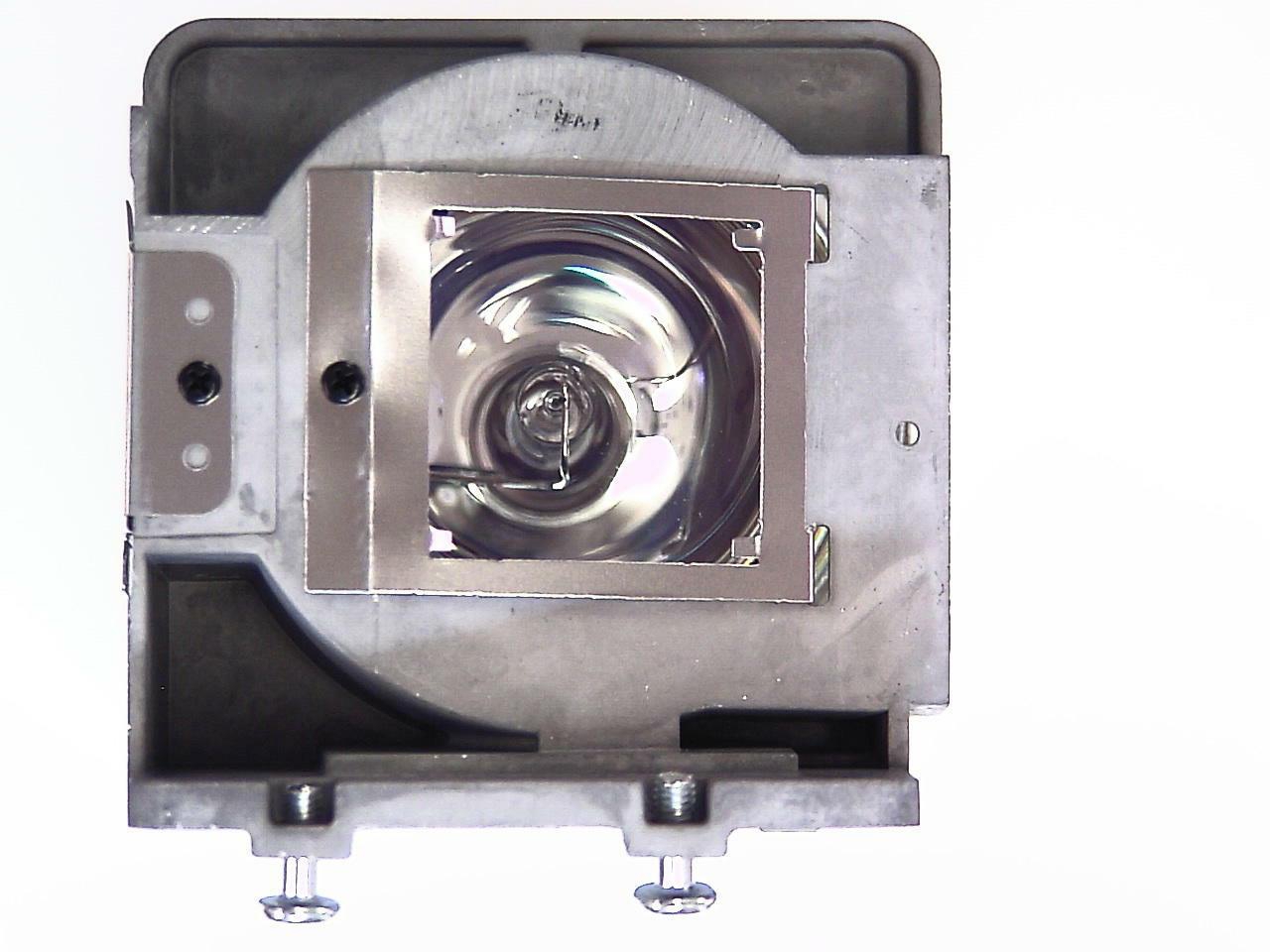

Lamp Type |
180 watt |
Lamp life (normal/eco-mode) |
5000 / 6000 hours |
Brightness |
2,500 Lumens |
Contrast Ratio |
2000:1 (typ) / 3000:1 (dynamic) |
Aspect Ratio |
4.3 (native), 16:9, auto |
Color Wheel |
6-Seg RGBCYW / 7200RPM |
Color Depth |
24 bits, 16.7M Colors (8+8+8) |
Input Signal |
|
Computer and Video |
NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G, H, I, M, N, 60, SECAM (B, D, G, K, K1, L), SD 480i and 576i, ED 480p and 576p, HD 720p, 1080i and 108 |
Frequency |
Fh: 31 -100KHz, Fv: 50 -120Hz |
Compatibility |
|
PC |
VGA to UXGA |
Mac |
Up to UXGA (scaled) |
Connector |
|
Digital |
HDMI 1.3 |
Audio Input |
3.5mm mini jack |
Audio Out |
3.5mm mini jack |
RGB input |
15-pin mini D- sub (x2) |
Composite Input |
RCA jack |
S-Video Input |
4-pin mini-DIN |
Component |
15-pin mini D-sub (x2, shared with RGB) |
HDMI (input) |
HDMI 1.3 |
RGB Output |
15-pin mini D- sub |
Control |
RS-232 (DB-9) |
USB |
Mini B (for mouse control firmware update) |
Audio |
|
Speakers |
2W |
Power |
|
Voltage |
100 ~ 240VAC (Auto Switching), 50/60Hz (universal) |
Consumption |
235W (typ) <1W (stand-by mode) |
Controls |
|
Basic |
Power, keystone/arrow keys, left/source, menu/exit, right/mode |
OSD |
Picture: Color Mode, Brightest PC, ViewMatch, Movie, User 1, User 2, White board, Black board, Green board, Brightness, Contrast, Color setting, User color, White intensity, Gamma, Aspect Ratio, Keystone, 3D sync, 3D invert Video / Audio: Frequency, Tracking, H & V position, Zoom, Video setting, Audio setting Setting (Basic): Projector Projection, Menu Setting, Signal Type, Blank Screen, Test Pattern, Start up screen, Message, Auto source, Power saving, Green mode Option (Advanced): Closed Caption, DCR, Password, Presentation Timer, High Altitude, Lamp setting, Factory Default Information: Current System Status, Input Source, Resolution, H & V Frequency, Lamp hours |
Operating Conditions |
|
Temperature |
32 F-104 F (0ºC-40ºC) |
Humidity |
10%-80% (non-condensing) |
Altitude |
0~6,000 ft (1,800m), operational up to 10,000 ft (3048m) |
Noise Level |
|
Normal |
32dB |
Eco-Mode |
30dB |
Dimensions (WxHxD) |
|
Physical |
11.2" x 3.2" x 9.2" (in) / 294 x 82 x 234 (mm) |
Packaging |
13.0" x 13.0" x 5.5" (in) / 330 x 330 x 140 (mm) |
Weight |
|
NET |
5.7 lb (2.6 kg) |
Gross |
7.5 lb (3.4 kg) |
Regulations |
RoHS,CB, CCC, PSB, C-tick, KC, SASO, CE, GOST-R, Ukr, Erp, SVHC list & REACH DoC, UL, FCC(including ICES-003), cUL/ CSA, Argen, NOM |
Package Contents |
ViewSonic PJD5353 projector, power cable, VGA cable, remote control with batteries, Quick Start Guide, ViewSonic Wizard CD (with User Guide) |
Warranty |
3-year limited warranty on parts, 1-year limited warranty on lamp, 1st year Express Exchange service. |
Depth |
9.2 in |
Depth |
234 mm |
Height |
3.2 in |
Height |
82 mm |
Width |
11.2 in |
Width |
294 mm |
Product Weight |
5.7 lbs |
Product Weight |
2.6 kg |
Peak Power |
235 Watt |
Standby Power |
1 Watt |
Brightness Full |
2500 lumens |
Integrated Speakers |
1 |
Lamp Life Economy |
6000 hours |
Lamp Life Full |
5000 hours |
Lamp Quantity |
1 |
Lens Type |
Fixed Manual optical zoom / Manual optical focus |
Motorized Zoom |
0 |
Regulatory Compliance |
RoHS,CB, CCC, PSB, C-tick, KC, SASO, CE, GOST-R, Ukr, Erp, SVHC list & REACH DoC, UL, FCC(including ICES-003), cUL/ CSA, Argen, NOM |
Resolution Horizontal |
1024 pixels |
Resolution Vertical |
768 pixels |
Technology |
XGA |
Throw Distance Base Point |
1.6ft - 14.0ft / 0.5m - 4.3m |
